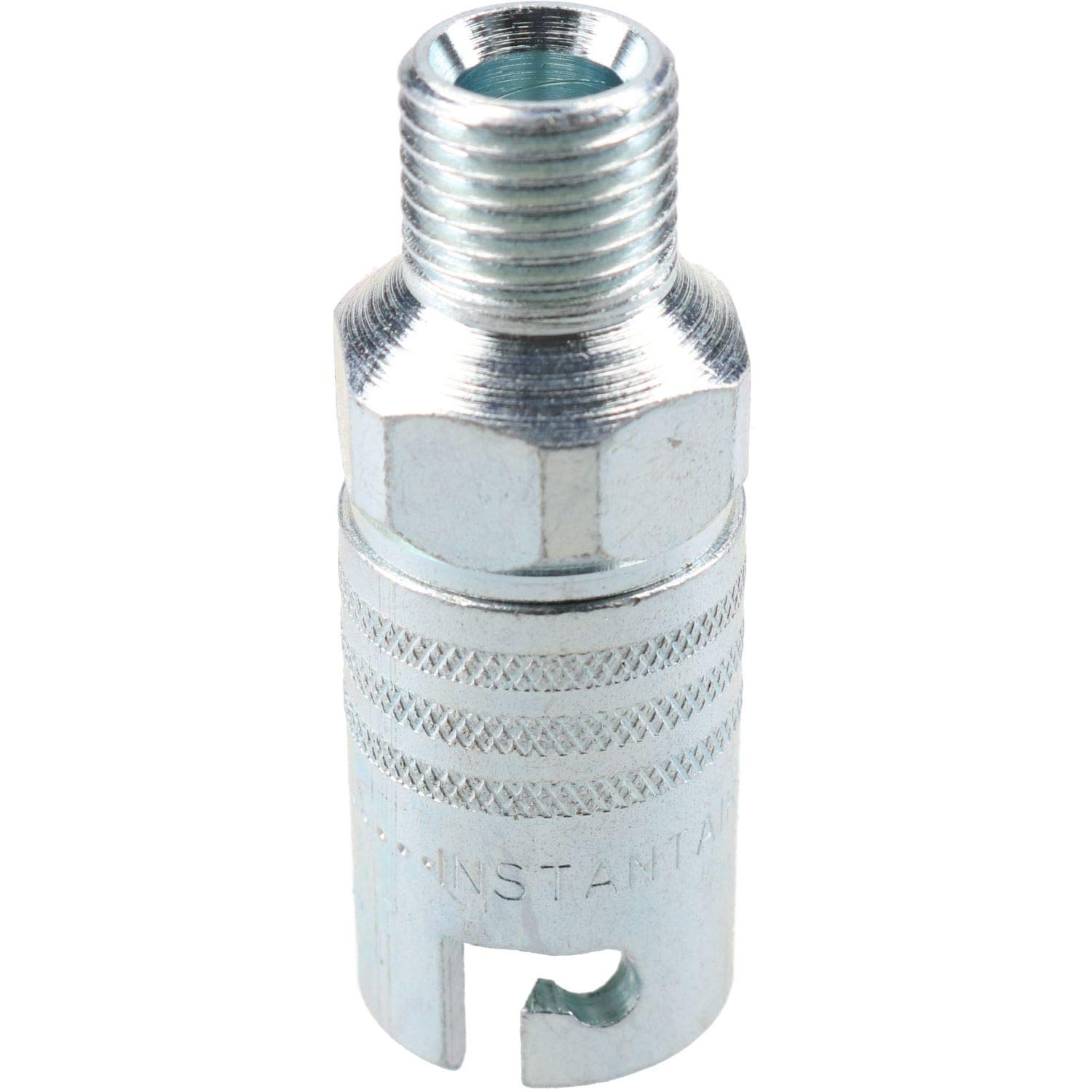

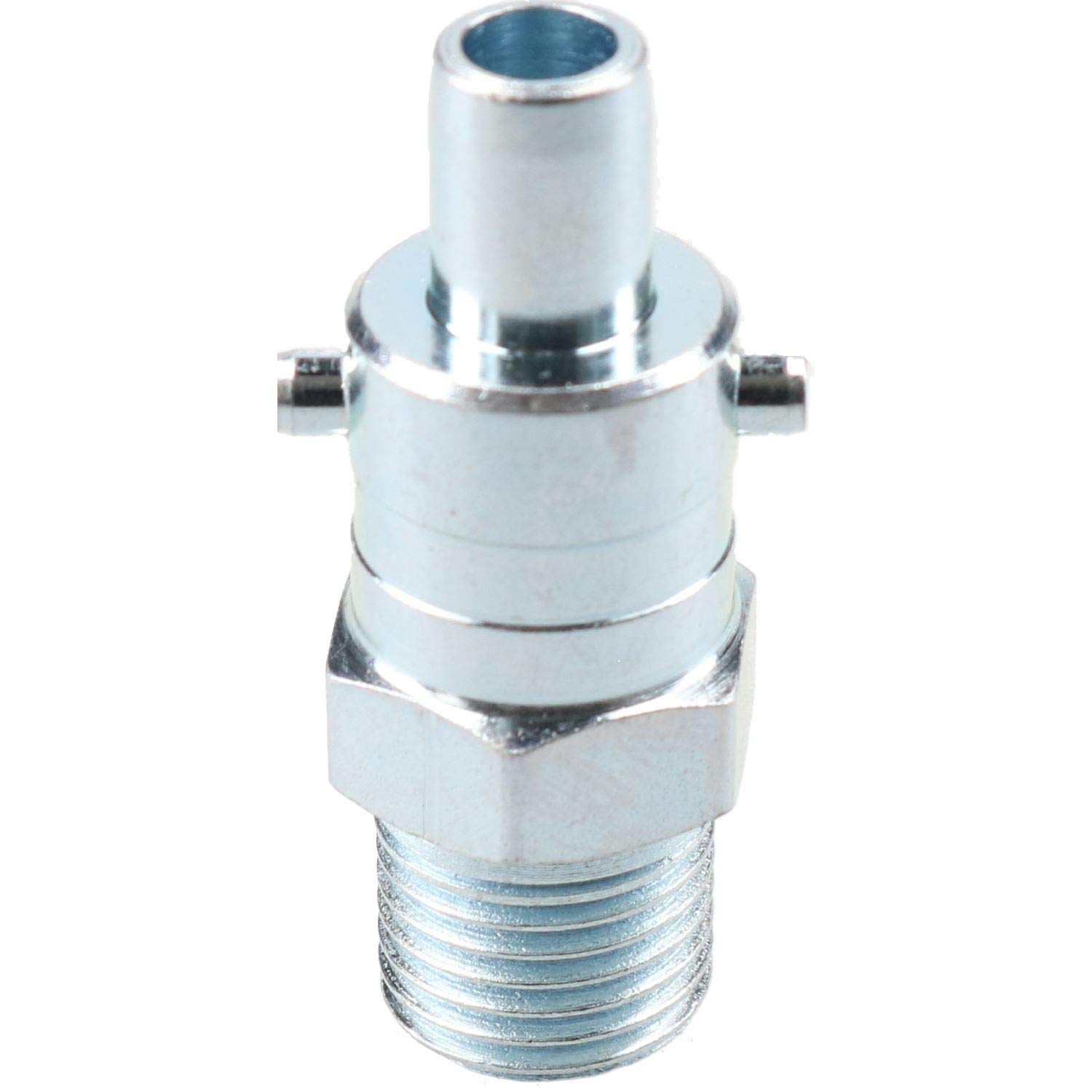

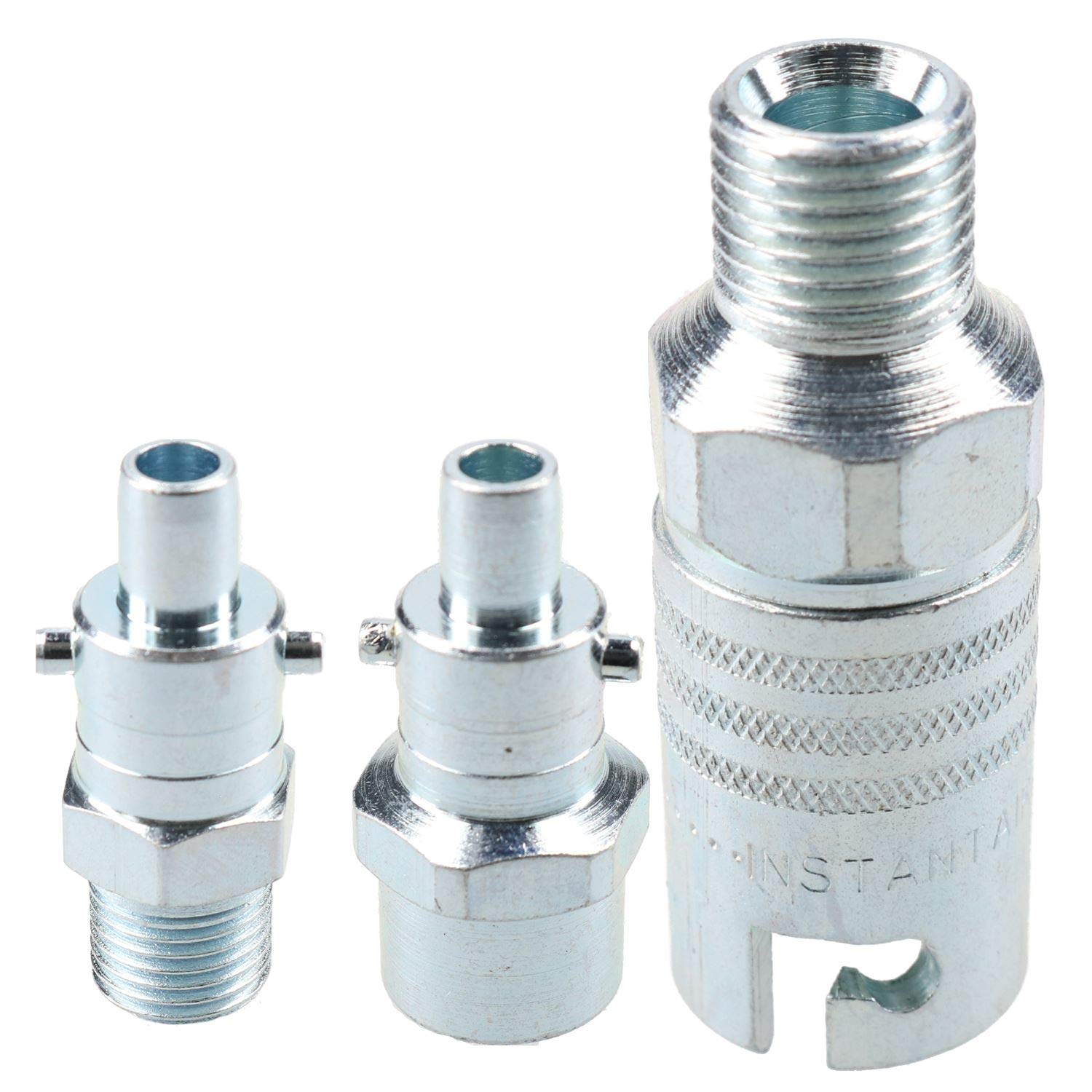

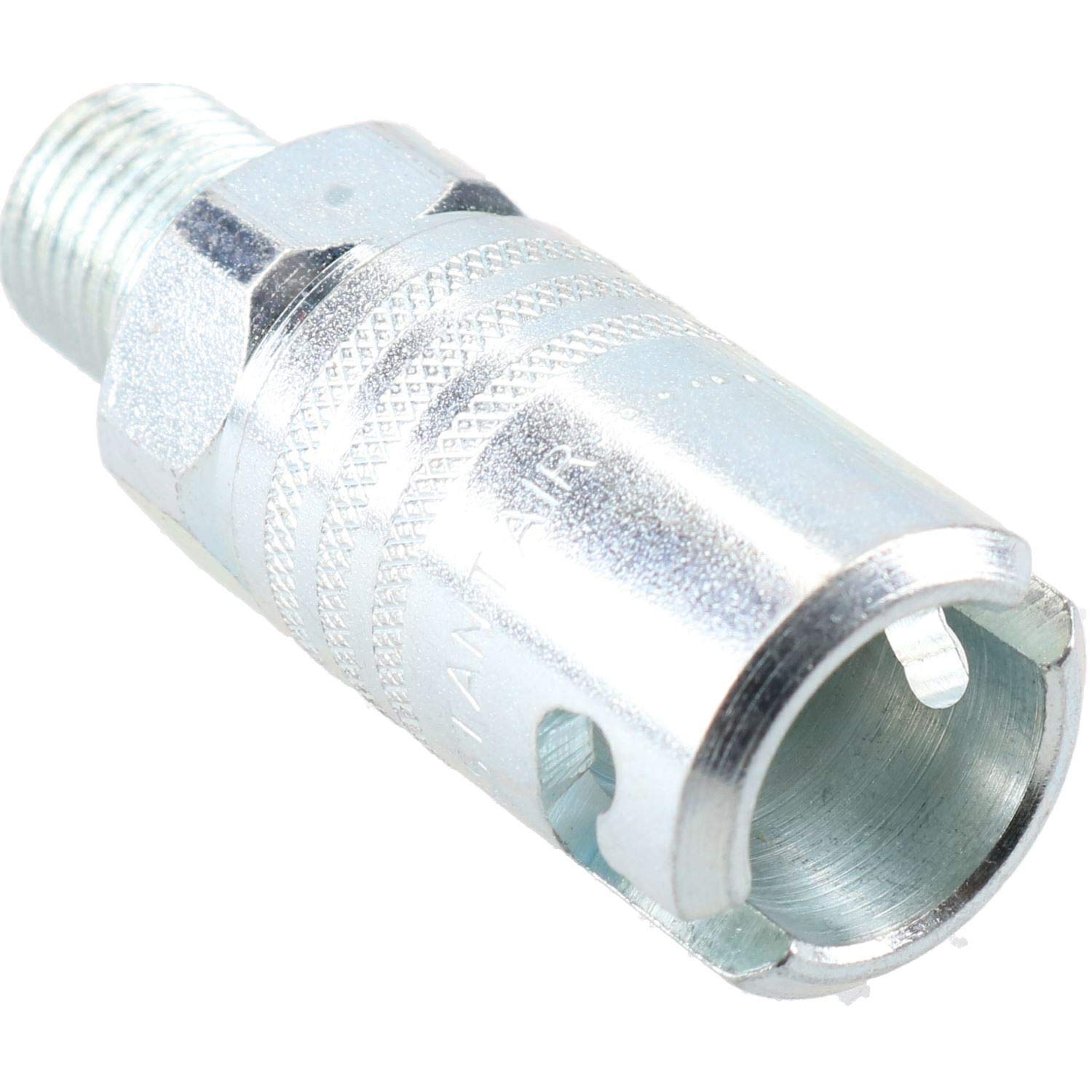

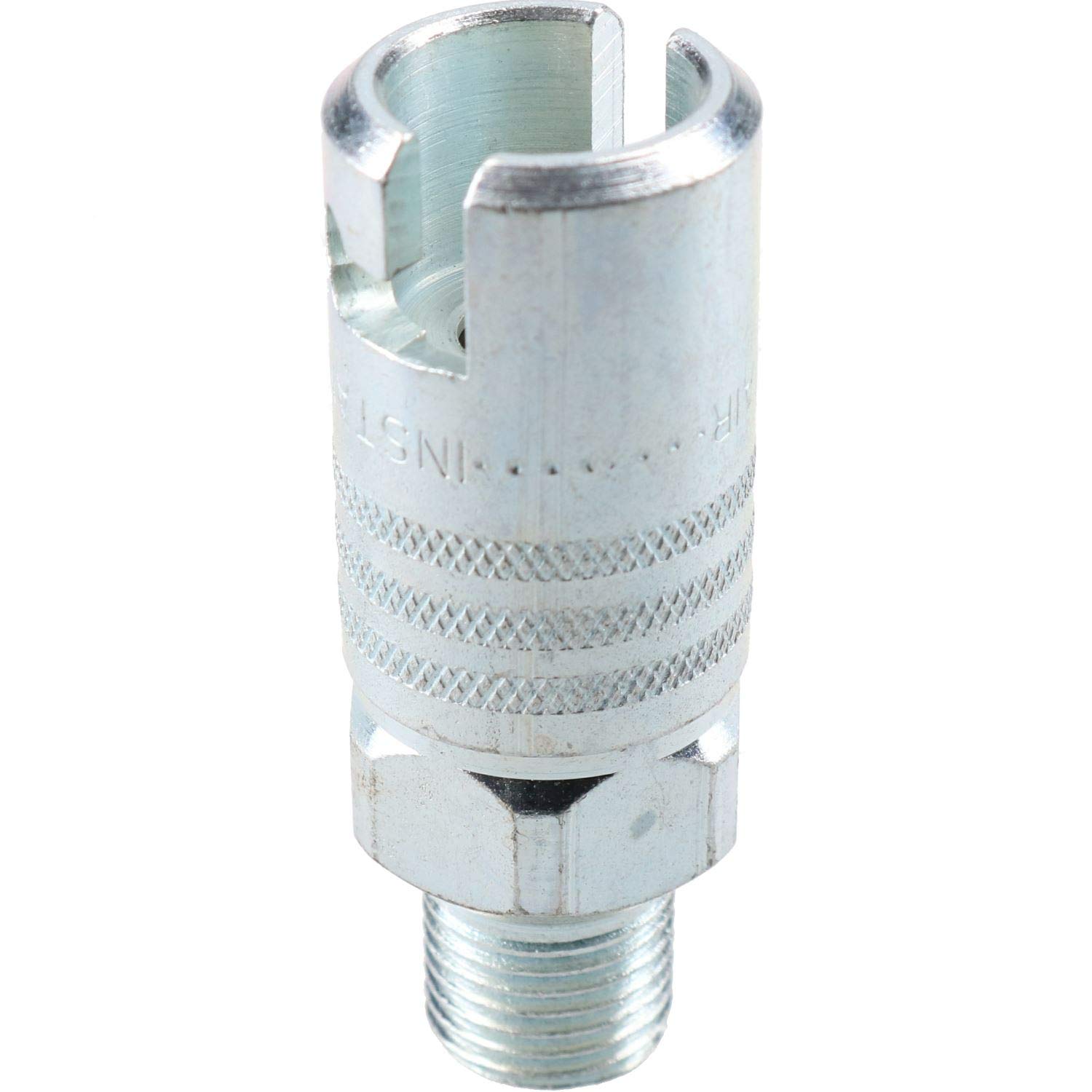

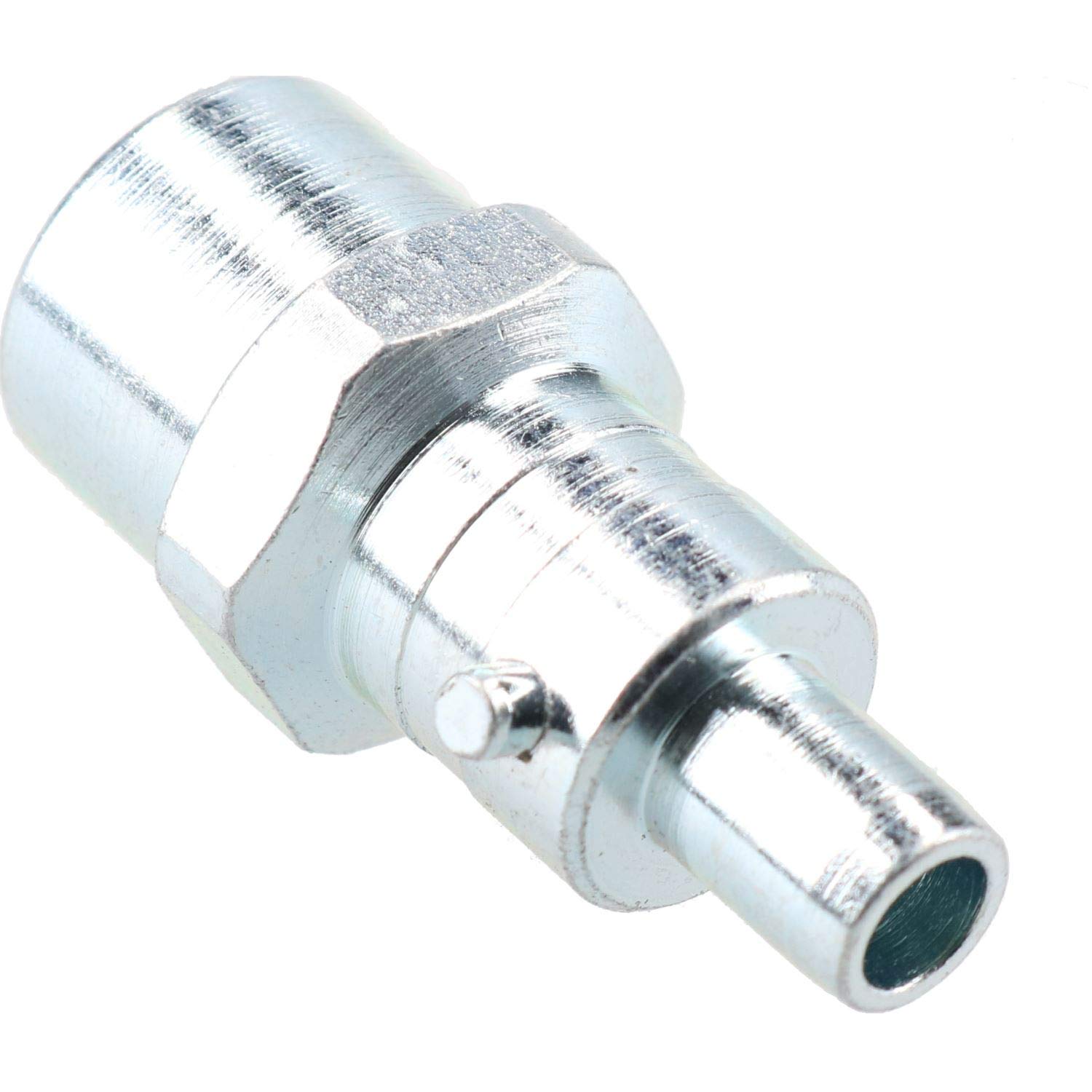

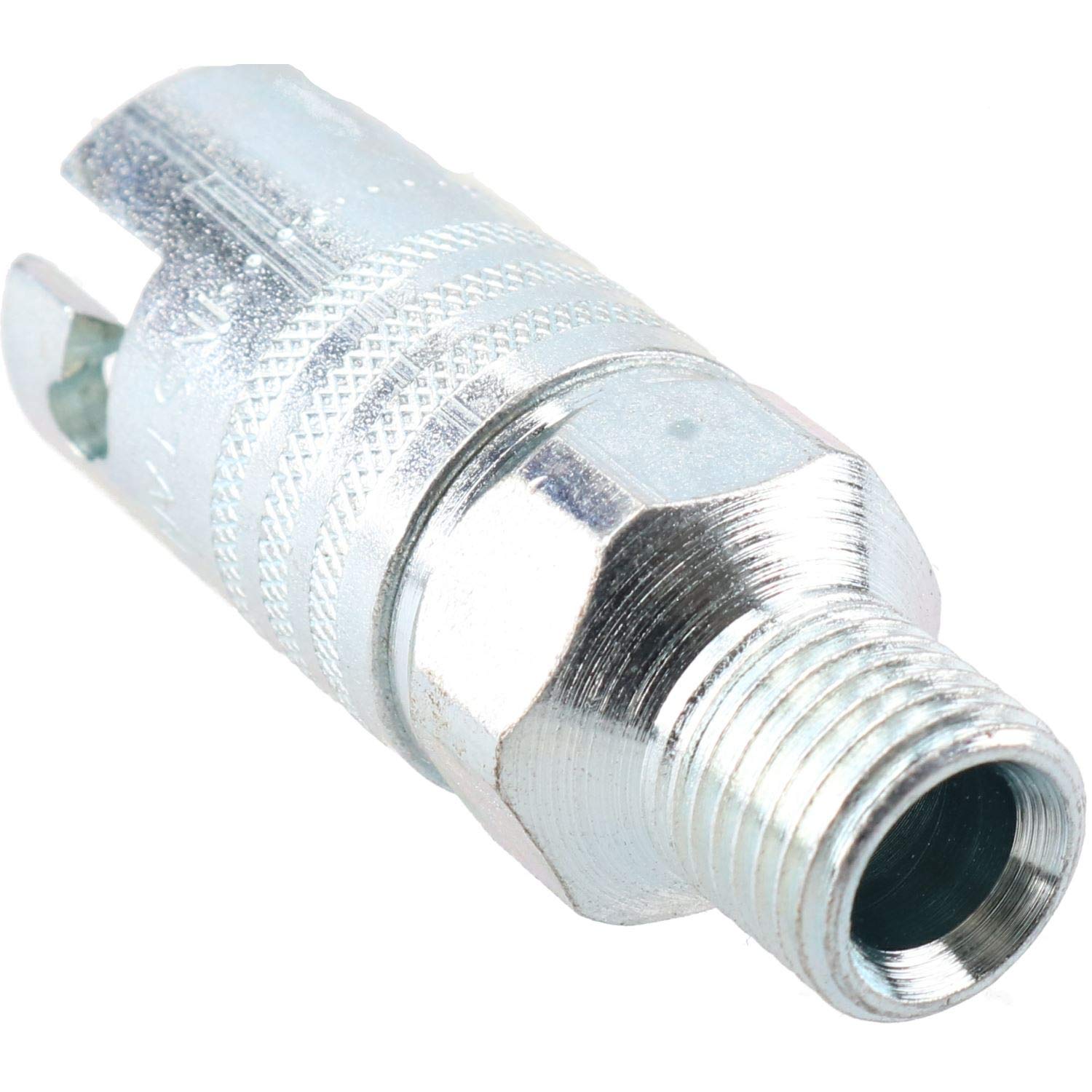

1/4" BSP Male Thread PCL Instant Air Coupler with Bayonet Fitting - Quick Connect Air Tool Adapter for Pneumatic Systems, Compressors & Industrial Applications

These InstantAir Adaptors are suitable for most fixed compressed air applications, although swivel adaptors are recommended for trailing hose applications. The Broomwade InstantAir Steel Swivel Adaptors business was acquired by PCL in 2001 and these couplings and adaptors are now manufactured to the same quality and standard in Sheffield by PCL.Specifications: Nominal bore: 5.6mm Maximum Working Pressure (static and random rotation): 17bar Maximum Working Pressure (under continuous rotation): 10bar Bayonet type couplings, preventing accidental disconnection Range of swivel or non-swivel adaptors Description: InstantAir Series Temperature Range: -20 C to 80 C Material: Steel Max Flow Rate: 54 cfm @ 100 psi Maximum Vacuum: 660mm (26in) Hg Maximum Axial Pull: 114kg Air Inlet: 1/4" BSP Thread Type: Male & Female Genuine PCL: AC51CM / AA5102 / AA5106 Made in Sheffield UKInterchangeability Broomwade
